Web Data…Conductors?

Tableau 19.3 released this week, and with it came a whole host of features, including Server Management, Explain Data, and Data Catalog. Data Catalog (a part of the Data Management Add-on) allows you to see what data is being used on your Tableau instance, how people are using it, what tables they’re using in conjunction with what, and all of the associated lineage. On top of that, it allows you to write alerts, notify data users of outages/delays, and predict the impact of deprecating individual data assets. All of these features have created a renewed interest in the Data Management add-on, which also includes Prep Conductor.

One of the new features released within Prep in 2019.3 is the ability to use Python/R within your Prep flows. Now my experience with Python is effectively 0, but there is a really easy and cool use case worth documenting. Tableau has long had the ability to connect to API-based data through Web Data Connectors or the Extract/Hyper API, but both of these remove you from the Tableau interface. Hosting Web Data Connectors can be a hassle and require extra admin work, and the Hyper API exists entirely outside of Tableau, giving you little visibility to when (or if) tasks finish. The Python Prep node requires only that you create a function which take a dataframe as an argument and returns a dataframe, and this means you can now create entirely (or partly) web-based data connections entirely in-flow. The steps are below.

  1. Create a function which takes a dataframe as an argument.
  2. In that function, ping the necessary API.
  3. Convert the return from that API into a dataframe.
  4. Define the schema of that new dataframe.
  5. Save your Python work as a .py file.

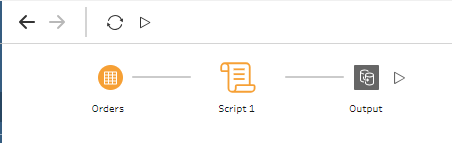

  6. Create a Prep flow with an input, a Script node, and an output.
  7. Publish it!
  1. Create a Python function. In a text editor of your choice, you’ll simply define a function. It must take a dataframe as an argument, as this will be the data passed from your Prep flow into the function.
def APIcall(df):

2. Ping the necessary API. In this case, I’m using a stock-ticker API from alphavantage. You should get your own API key, but mine is published here. This API call returns a dictionary of CRM (our new overlord) stock data history. For this, I’m using the requests library.

def APIcall(df):
    r = requests.get("https://www.alphavantage.co/query?function=TIME_SERIES_DAILY&symbol=CRM&apikey=UT5SGBK00NBXYLK1&outputsize=full")

3. Convert the return from that API call into a dataframe. To do this, I’m using a couple of pieces. I use the json library to convert the string response from the API into a dict, then use pandas to convert the dict to a dataframe.

def APIcall(df):
    r = requests.get("https://www.alphavantage.co/query?function=TIME_SERIES_DAILY&symbol=CRM&apikey=UT5SGBK00NBXYLK1&outputsize=full")
   dfWorking = pd.DataFrame();
    data = json.loads(r.text)
    data = data["Time Series (Daily)"]
    dfWorking = pd.DataFrame.from_dict(data, orient='index')
    return dfWorking

This returns all of my data, but my dates are being used as an index, not a column.

def APIcall(df):
    r = requests.get("https://www.alphavantage.co/query?function=TIME_SERIES_DAILY&symbol=CRM&apikey=UT5SGBK00NBXYLK1&outputsize=full")
    dfWorking = pd.DataFrame();
    data = json.loads(r.text)
    data = data["Time Series (Daily)"]
    dfWorking = pd.DataFrame.from_dict(data, orient='index')
    dfWorking['date'] = dfWorking.index
    return dfWorking

4. Define (and match) the schemas. The Tableau help article here shows how to define the schema that we’re returning. On top of that, though, we need to make sure that our dataframe has the appropriate types. Even though the stock prices look like decimals, the API returned them as strings. First, I recast those values as floats, then I define the schema of the dataframe I’ll send back to Tableau. Make sure you also import all of the necessary libraries.

import requests;
import pandas as pd;
import json;
def APIcall(df):
    r = requests.get("https://www.alphavantage.co/query?function=TIME_SERIES_DAILY&symbol=CRM&apikey=UT5SGBK00NBXYLK1&outputsize=full")
    dfWorking = pd.DataFrame();
    data = json.loads(r.text)
    data = data["Time Series (Daily)"]
    dfWorking = pd.DataFrame.from_dict(data, orient='index')
    dfWorking['date'] = dfWorking.index
    dfWorking = dfWorking.astype({'5. volume': 'int32'})
    recast = ['1. open', '2. high', '3. low', '4. close'];
    for f in recast:
        dfWorking = dfWorking.astype({f: 'double'})
    return dfWorking
def get_output_schema():
    return pd.DataFrame({
        'date' : prep_date(),
        '1. open' : prep_decimal(),
        '2. high' : prep_decimal(),
        '3. low' : prep_decimal(),
        '4. close' : prep_decimal(),
        '5. volume' : prep_decimal(),
    });

5. Creating a Prep flow. This part is easy. Simply open Prep and connect to data. Even though the data we return will be entirely API-based, Tableau requires that you connect to a set of data (and it has to have at least one row). In my case, I used Superstore. Turns out you really can demo anything using only Superstore. You’ll need a TabPy server set up, but the rest is easy. Simply connect to any dataset, run your newly-created Python script, and create an output on Server. Now schedule that to refresh and you’ll get API-based data with all of the monitoring Tableau has to offer!

So how does this really work? Tableau takes in a dataframe from your datasource, throws out that data, and replaces it with your new dataframe. What else can we do with this? All sorts of things. Now you’ve got your API-based data in a Prep flow. Want to union it to something? Run cross-db joins? Pivot it? Join it to a published datasource so you can correlate stock prices with the times your customers purchase? The world is your oyster. Of course, you can also make more complex scripts. For example, you could simply incorporate a for-loop into this script an return the data for any number of tickers that you want. To find the history of Tableau, for example, I need both the CRM and DATA tickers. I’ve created an array below which allows for an input of tickers and an output of a hyper file with all of the stock data for both companies.

import requests;
import pandas as pd;
import json;
def APIcall(df):
	tickers = ["DATA", "CRM"];
	dfWorking = pd.DataFrame();
	recast = ['1. open', '2. high', '3. low', '4. close'];
	for i in tickers:
		r = requests.get("https://www.alphavantage.co/query?function=TIME_SERIES_DAILY&symbol=" + i + "&apikey=UT5SGBK00NBXYLK1&outputsize=full")
		data = r.text
		data = json.loads(data)
		data = data["Time Series (Daily)"]
		newFrame = pd.DataFrame.from_dict(data,orient='index')
		newFrame['date'] = newFrame.index
		newFrame['ticker'] = i
		dfWorking = dfWorking.append(newFrame)
	for f in recast:
		dfWorking = dfWorking.astype({f: 'double'})
	dfWorking = dfWorking.astype({'5. volume': 'int32'})
	return dfWorking


def get_output_schema():
    return pd.DataFrame({
        'date' : prep_date(),
        '1. open' : prep_decimal(),
        '2. high' : prep_decimal(),
        '3. low' : prep_decimal(),
        '4. close' : prep_decimal(),
        '5. volume' : prep_decimal(),
        'ticker' : prep_string()
    });

Make a viz out of that dataset and see exactly how valuable Tableau was to Salesforce! Or set up your own script and automate other cool workflows. Want to send out your dataset as a CSV? Simply incorporate that into the Python script. Even though it has to take in and return a dataframe, that doesn’t mean all it can do is ETL. Have fun with it!

Publishing TDS Datasources Using Tableau Prep

Though Tableau originated as a visualization tool, it has added significant ETL processes over the last couple versions. With version 18.1 it added Tableau Prep and the ability to build ETL flows, and 19.1 added Prep Conductor, which comes with the ability to automate workflows to run on a schedule. One current limitation, however, is that Tableau Prep outputs a .hyper file, not a .tdsx file. What’s the difference here?

In Tableau, a .hyper file is a raw data file. It contains the results of the data from the datasources as well as any calculations which can be materialized at the individual row level (calculations like string manipulations, differences between two columns, etc.). Calculations which can’t be materialized on individual rows, however, aren’t stored in a .hyper file, but instead are saved in a .tds file (Tableau Datasource). This file contains the logic for level of detail calculations, aggregate calculations (such as ratios), and the username-based calculations often used for row level security. A .tdsx file is the combination of the raw data (.hyper file) and the associated logic (.tds file). Tableau Prep, however, doesn’t allow for the customization of .tds files. If you want to add aggregate calculations, you can do so in Desktop, but when Conductor runs your flow, it will overwrite your entire Datasource, replacing your .tds file with a generic one and losing all of your calculations in the process. Below is a walk-through of how to avoid that behavior.

Before we go any further, it’s worth noting that this workflow will probably be streamlined at some point, but that for now, this is the easiest way of allowing creating a Datasource with data from Prep and .tds-based logic.

  1. Create a Prep flow which outputs a .hyper file to a network-mapped location.
    1. In the Output step of your Prep flow, do not select “Publish as a data source”, but instead choose “Save to File”. You need to ensure that your Prep inputs and outputs are using UNC file paths, so it will continue to work when published to Server.
  2. Publish and schedule the flow.
    1. Simply publish your flow to Tableau Server. You’ll need to ensure that your Run As User has access to the file input/output locations as well as safelisting those file locations for Prep Conductor.
    2. Though we’ll tie this flow to a schedule, we won’t actually be relying on the schedule’s timing to run the flow. Therefore, you’ll want to make it a schedule that you don’t use for anything else and only runs very infrequently. I set mine to run monthly on a schedule named “PrepScriptSchedule”. The reason we need to tie it to a schedule (even though we aren’t relying on timing) is that tabcmd allows us to run a scheduled task.
  3. Open the output of the flow in Tableau Desktop.
  4. Create your Datasource modifications in Desktop (create calculations, Datasource filters, hierarchies)
  5. Publish the Datasource.
  6. Using tabcmd, refresh the .hyper file and publish it without overwriting the Datasource.
    1. If you’re not already using tabcmd, you’ll need to install it.
    2. Log in to the Server using tabcmd login.
    3. Run the Prep flow using tabcmd runschedule.
      1. Because we’re running a schedule (not executing a task on Tableau Server), we’ll need to build in a wait time for our script. This step has started the Prep Flow, but we’ll need to pause until it finishes creating the file.
    4. Pause the script until the flow is complete using SLEEP. This command takes an argument which is the number of seconds to pause your script. You should make sure that the number you input here is higher than the time your Prep Flow takes to run.
    5. Using the tabcmd publish command, point to the .hyper file output from the Prep flow and overwrite the Datasource in question. Use the –replace option to avoid overwriting the .tds, instead just overwriting the source data contained in the .hyper file.
tabcmd login -s https://<server-name> -u <username> -p <password> -t <siteName>
tabcmd runschedule "PrepScriptSchedule"
sleep 1000
tabcmd publish "\\network\filepath\prepoutput.hyper" -n <targetDatasource> --replace

It’s an easy script to run, and can be run on the schedule of your choice using any task scheduler (most likely Windows Task Scheduler or as a cron job). Using the above script we can create Tableau Datasources with Prep ETL, Desktop metadata, and Server security, and refresh it all on a schedule. Go forth and enjoy your complex data structures with complex governance tied in!

Date Filter Extensions in Tableau

Tableau handles dates fairly flexibly – it allows a variety of input formats, handles them as hierarchies naturally, and provides a ton of calculation flexibility for any sort of math or logic.  The two major criticisms I hear from Tableau users are how they interact with a) parameters and b) filters.  The parameter ask is fairly simple – people want parameters to automatically update to “today” when they load a dashboard.  Luckily, there’s a free extension available in the extensions gallery which does exactly this.  It’s built and hosted by Tableau, and the source code is freely available.

Filters, on the other hand, have a lot more options for implementation.  Relative date filters are very powerful, but what if I want to look at a subset of data from last year?  Date sliders are the only way to do that, but they have their own limitations.  A date slider only has two settings for it’s default settings.

  1. Full extent of the data
    1. When the dashboard loads, Tableau finds the full range of your date data and sets the bounds to those dates.  This is great because when you load the dashboard, it’ll take into account all of the most recent data.  The problem arises when you have 5 years worth of data.  Do you really want to query all that when it first loads, just so you can look at this week’s data?
  2. Pre-set values
    1. If you want to make sure that Tableau doesn’t query all of your data, you can pre-set the slider values.  The problem here is that it isn’t forward-looking.  If I publish a dashboard on 1/1/2019 and hardcode the values, then when someone loads the dashboard in the future, the filter will still be set to 1/1/2019 as the max.

So there’s the problem – Tableau allows you to hardcode both sides of of the slider or neitherMost people want to hardcode one side and have the other be dynamic…so that’s the extension we built.  A Tableau Extension is a custom webpage which is added to a dashboard to extend the functionality.  For more info on extensions, check out the Tableau developers page.

Below is a quick tutorial to build out an extension for custom date functionality in Tableau.  The code I’m referencing is available here.  The left-hand side of that page contains an HTML file, a JS file, a TREX file, and a favicon file, which is everything you’ll need to create an extension.

  1. Build a webpage.
    1. An extension is a custom HTML page.  In this case, the HTML page does almost nothing, so it’ll just contain a title and references to the JS we’re using (jQuery, bootstrap, the Extensions Library, our JS file).
    2.
  2. Add JS functionality.  Everything from here on out is in the JS file.
    1. First thing we need to do is initialize the API (line 1).
  3. Create a function to update your filter (line 5, updateFilterRange()).
  4. Set variables for your start and end points.
    1. We’ll hardcode the starting date to a date of your choice.  This is easily done by creating a date in JS.
      1. let minDate = new Date(“1/1/2014”)
    2. For the upper limit, you’ve got flexibility.  The two major use cases I see here are setting it to “today” or setting it to the highest date in the dataset.  Setting it to “today” is easy, as a Date instance in JS will default to “today”.  The other option is getting data from the workbook itself, which is what we’ve done in the sample code.
      1. Create a calculation in the workbook which returns your highest date.  Using an LOD to return this is simple {FIXED : MAX([Date])}.  Put this calculation on detail on your target worksheet to make it available to the API.
      2. In your JS, we make an API call to return data from your sheet.  This returns summary data, meaning one result per mark on the sheet.  From the table returned, we’ll find your Max Date column.  Because it returns the same result for every mark, we’ll can use Max Date from any mark.  (Note that we could have calculated max date here instead of using an LOD, but we’re taking advantage of the Hyper database instead of iterating through all of your data in JS).  Set this as your maxDate variable.
      3. Invoke the applyFilterRangeAsync function.  It takes 3 arguments: the field you defined at the beginning, the minDate that you hard-coded, and the maxDate returned from our table.
  5. Call the function you’ve created.

tableau.extensions.initializeAsync().then(() => {
  updateFilterRangeDataSource();
});

function updateFilterRangeDataSource() {
  //define our target sheet, field, minimum date, and dashboard
  let fieldName = 'Date';
  let sheetName = 'Timeline';
  let minDate = new Date("1/1/2014");
  let dashboard = tableau.extensions.dashboardContent.dashboard;
  let selectedWorksheet = dashboard.worksheets.find(w => w.name === sheetName);
  //get data back from the workbook to find our highest possible date
  selectedWorksheet.getSummaryDataAsync().then( table => {
    let maxDateColumn = table.columns.find(columnNames => columnNames.fieldName === 'Max Date').index;
    let maxDate = new Date(table.data[0][maxDateColumn].value);
    //make the API call to update the Tableau Filter
    selectedWorksheet.applyRangeFilterAsync(fieldName, { min: minDate ,max: maxDate});
  });
}

6. Add the TREX file to your workbook!

There it is!  15 lines of JavaScript and you’ve built a feature which massively extends Tableau’s default date functionality.  Of course, this is far from the limits of what we can do with the extensions.  If you’d like to build a custom UI for your date filters, there are tons of JS widgets you could incorporate into an extension.  If you’d like any other default ranges, you just need to tweak the variables.  If you’d like to make this more scalable, you can use the Settings namespace in the Extensions API to make this workbook-agnostic.

Overall, though, it’s cool to note what we’ve done here.  The Extensions API is often billed as a way to integrate two applications, or a way to create custom visual elements (and it’s great for both of these things).  To me, however, the biggest wins I’ve had with the Extensions API have been creating functionality that Tableau previously didn’t have, and doing so in an efficient way.
